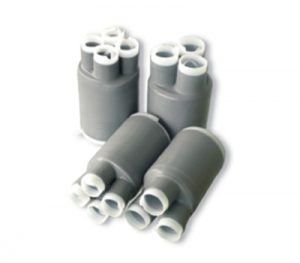

CYG-CDB Cold Shrink Silicone Rubber Breakout is designed to protect the phase leg breakout area of medium voltage shielded power cable, from exposure to moisture, contamination, corrosion, ozone, UV and other hazards associated with termination operating environments.
Specification
| Size | Core | Base dimension (mm) | Finger dimension (mm) | Cable range (mm2) | ||
| ID AS supplied | ID After recovery | ID AS supplied | ID After recovery | |||
| 85/35 | 3cores For 15KV | 85 | 34 | 32 | 13 | 25-50 |
| 95/50 | 95 | 49 | 38 | 16 | 70-120 | |
| 100/60 | 105 | 56 | 45 | 20 | 150-240 | |
| 110/65 | 114 | 63 | 52 | 24 | 300-400 | |
| 120/75 | 3 cores for 36kv | 122 | 71 | 55 | 25 | 35-70 |
| 135/85 | 139 | 83 | 60 | 30 | 95-185 | |
| 150/90 | 155 | 90 | 70 | 37 | 240-400 | |
| 60/20 | 4 cores for 1KV | 60 | 18 | 20 | 7 | 25-50 |
| 70/25 | 70 | 23 | 26 | 9 | 70-120 | |
| 90/35 | 90 | 32 | 33 | 13 | 150-240 | |
| 100/40 | 100 | 38 | 40 | 17 | 300-400 | |
