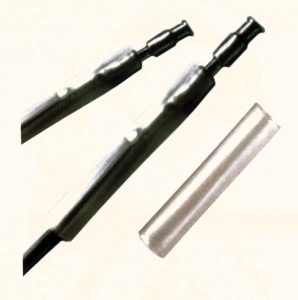

KYNAR(150℃) is clear, thin-wall, flexible, flame-retardant heat-shrinkable tubing with excellent chemical resistance. It is especially suitable for applications requiring abrasion and cut-through resistance, or superior chemical and solvent resistance properties. Provides electrical insulation and strain relief of multipoint connectors and solder joints. Ideal for applications that require dense packing of components or visual inspection of covered components.
Standard: UL224, SAE-AMS-DTL25053/8
CYG-KYNAR(175℃) is clear, thin wall, semi-rigid, flame-retardant heat-shrinkable tubing with both high temperature and chemical resistance. Especially suitable for applications requiring high temperature performance, outstanding abrasion resistance and cut-through resistance, or superior chemical and solvent properties. Provides electrical insulation and strain relief of multipoint connectors and solder joints. CYG-KYNAR(175℃) is ideal for applications that require dense packing of components or visual inspection of covered components.
Standard: UL224, SAE-AMS-DTL25053/8
Specifications
| Item | Test Methods | CYG-KYNAR(150°C) | CYG-KYNAR(175°C) |
| Min. Shrink Temperature | 140°C | 155°C | |
| Operation Temperature Range | -55°C ~150°C |
-55°C ~175°C | |
| Specific Gravity | ASTM D792 | 1.78g/cm³ | 1.78g/cm³ |
| Tensile Strength | ASTM D2671 | ≥30M Pa | ≥34.5MPa |
| Elongation at Break | ASTM D2671 | ≥150% | ≥150% |
| Elongation at Break after Aging | 225℃,168hrs | ≥100% | ≥50% |
| Heat Shock | 275℃,4hrs | No Cracking | No Cracking |
| Cold Bend | -55℃,4hrs | No Cracking | No Cracking |
| Dielectric Strength | ASTM D2671 | ≥15.7kV/mm | ≥31.5kV/mm |
| Volume Resistance | ASTM D257 | ≥1.0 x 10¹³ Ω.cm | ≥1.0 x 10¹³ Ω.cm |
| Flammability | UL-224 | VW-1 | VW-1 |
Sizes
| Size | As supplied(mm) Min. inside diameter |
After recovery (mm) Max. Inside Diameter |
After recovery (mm) Wall Thickness |
| 3/64 | ≥1.20 | ≤0.60 | 0.25 ± 0.05 |
| 1/16 | ≥1.60 | ≤0.80 | 0.25 ± 0.05 |
| 3/32 | ≥2.40 | ≤1.20 | 0.25 ± 0.05 |
| 1/8 | ≥3.20 | ≤1.60 | 0.25 ± 0.05 |
| 3/16 | ≥4.80 | ≤2.40 | 0.25 ± 0.05 |
| 1/4 | ≥6.40 | ≤3.20 | 0.33 ± 0.05 |
| 3/8 | ≥9.50 | ≤4.80 | 0.33 ± 0.05 |
| 1/2 | ≥12.70 | ≤6.40 | 0.33 ± 0.05 |
| 3/4 | ≥19.10 | ≤9.50 | 0.43 ± 0.08 |
| 1 | ≥25.40 | ≤12.70 | 0.48 ± 0.08 |
