LOW FIRE HAZARD MARKER TAGS CYG-MT (TAG)

This image has an empty alt attribute; its file name is CYG-MT-TAG-258x300.jpg

Material: Radiation Cross-linked Polyolefin

Use:

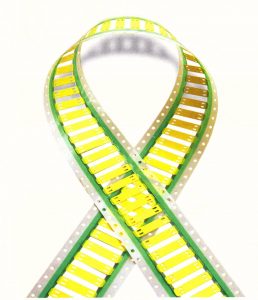

CYG-MT (TAG) cable markers are made from zero halogen, low smoke, low toxicity, radiation cross-linked, UV stabilized polyolefin sheet, formed into punched organized cable markers on a paper carrier. They are used for identification of cables and wire bundles by computer-based printing onto markers. Markers are attached using cables ties. CYG-MT (TAG) markers are ideal for applications where limited fire hazard characteristics are necessary. CYG-MT (TAG) marker can be used in a wide variety of applications. All CYG-MT )TAG) meet the performance requirements of SAE-ASM-DTL-23053/5 class I. The marks are good fluid, fuel, lube, resistance performance and permanent immediately after printing and remain legible even when exposed to abrasion, aggressive, cleaning solvents, and military fuels and oils. The marker meet the mark performance requirements of SAE AS81531 4.6.2 and MIL-STD-202

Futures and Benefits:

  • Permanent identification sleeves
  • Good fluid resistant
  • Computer-printable
  • Low smoke and RoSH criterion
  • Lightweight for aerospace application
  • Military specification material and print performance
  • UL Recognized , SAE AS 81531
  • Quick recovery for heat sensitive areas
  • For space flight, and railway

This image has an empty alt attribute; its file name is CYG-MT-TAG-DIA-300x171.jpg

Introduction

Item Test method Indicator
Tensile strength SAE-AMS-DTL-23053 ≥10.3MPa
Elongation at break SAE-AMS-DTL-23053 ≥200%
Low temperature flexibility SAE-AMS-DTL-23053.4.6.7 -40℃±1℃，4h,No cracks
Aging properties SAE-AMS-DTL-23053.4.6.8 250℃±3℃，4h,No cracks, no dripping, no flow
Tensile strength after aging SAE-AMS-DTL-23053.4.6.9 175℃±2℃，168h No damage (visually intuitive damage)
Elongation at break after aging SAE-AMS-DTL-23053.4.6.13ANDASTM D638 ≥6.9MPa，23℃±2℃
Color stability SAE-AMS-DTL-23053.4.6.13AndASTM D638 ≥100%，23℃±2℃
Dielectric strength SAE-AMS-DTL-23053.4.6.15 175℃±2℃,24h,by
Volume resistivity SAE-AMS-DTL-23053.4.6.13And ASTM D2671 ≥1.0×1014Ω· cm,500V（DC）,60s
Flame retardant SAE-AMS-DTL-23053.4.6.13 ASTM D876 Self-extinguishing within 60s, more than 25% of the iconic flag is damaged or burned, no dripping and a large area falling
Antibody solution performance SAE-AMS-DTL-23053.4.6.14And ASTM D2671 UL224 No damage (visually intuitive damage)
Printing durability SAE-AS-81531.4.6.2 Eraser 50 times, the writing is clearly visible
Printing solvent resistance MIL-STD-202G Method 215K Eraser 10 times, the writing is clearly visible

Specification

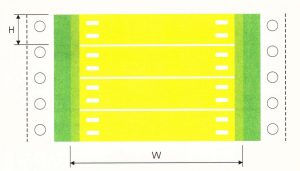

Specification Logo size（WxH） Printable area（WxH） Box Quantity/tablet
mm inches mm inches
CYG-MT(TAG)-45.00×10.40
45.00×10.40
1.80×0.40
25.00×10.40
1.00×0.40
1000
CYG-MT(TAG)-70.00×20.30
70.00×20.30
2.75×0.80
50.00×20.30
2.00×0.80
500

Note: The above table for the existing model and size, if other needs can be customized according to the needs
