YELLOW GREEN HEAT SHRINKABLE TUBING CB-HFT

This image has an empty alt attribute; its file name is CB-HFT-YG.jpg

CB-HFT(YG) is a yellow and green striped heat-shrinkable tubing which is flexible, flame-retardant and resistant to common fluids and solvents. This tubing may be used in yellow and green wiring linkage and ground marking.

Material: radiation cross-linked modified polyolefin material
Contraction ratio: 2: 1

Features:

  • halogen-free environment, low smoke, the product complies “RoHS”, “REACH”, “SONY” environmental standards;
  • soft, flexible; • products to meet UL224 VW-1 flammability rating and F-markcertified flammability rating; • products through the UL125 ℃ (E180908) certification;
  • Excellent insulation, heat resistance and voltage performance. Applications:surface yellow-green stripes, yellow and green wire connectors and ground appliedlogo.

Introduction

Test Items Test Methods Performance
Temperature Rating UL224 125℃
Length Rate Of Change ASTM D2671 -5%~+5%
Tensile Strength ASTM D638 ≥10.4MPa
Breaking Elongation ASTM D638 ≥200%
Hot Air Aging Test 158.0°C/168h –
Thermal aging Tensile strength ASTM D638 ≥7.3MPa
Heat Aging Breaking elongation ASTM D638 ≥100%
Voltage Level UL224 300V/600V
Volume Resistivity ASTM D2671 ≥1.0×10¹² · cm
Breakdown Voltage UL224 2500V(60s)No Breakdown
Thermal Shock UL224/250°C±3°C/4h Does not drip, Does not flow, Does not crack
With heart ASTM D2671 ≥70%

Specification

Specification Dimension before shrinkage（mm） Dimension before shrinkage（mm）
Diameter（D） Wall Thickness（T） Diameter（d） Wall Thickness（t）
Ф2.0
2.5+0.2/-0.1
0.20±0.05
≤1.00
0.42±0.08
Ф2.5
3.0+0.2/-0.1
0.22±0.05
≤1.25
0.46±0.08
Ф3.0
3.5+0.2/-0.1
0.22±0.05
≤1.50
0.46±0.08
Ф3.5
4.0+0.2/-0.1
0.22±0.05
≤1.75
0.46±0.08
Ф4.0
4.6+0.2/-0.1
0.22±0.05
≤2.00
0.46±0.08
Ф4.5
5.0+0.2/-0.1
0.23±0.05
≤2.25
0.46±0.08
Ф5.0
5.5+0.2/-0.1
0.25±0.05
≤2.50
0.50±0.08
Ф5.5
6.0+0.2/-0.1
0.25±0.05
≤2.75
0.50±0.08
Ф6.0
6.5+0.2/-0.1
0.25±0.05
≤3.00
0.55±0.10
Ф6.5
6.9+0.2/-0.1
0.25±0.05
≤3.25
0.55±0.10
Ф7.0
7.5+0.2/-0.1
0.25±0.05
≤3.50
0.55±0.10
Ф8.0
8.5+0.3/-0.1
0.28±0.06
≤4.00
0.58±0.10
Ф9.0
9.5+0.2/-0.1
0.28±0.06
≤4.50
0.58±0.10
Ф10
10.5+0.3/-0.1
0.28±0.06
≤5.00
0.58±0.10
Ф11
11.5+0.3/-0.1
0.28±0.06
≤5.50
0.58±0.10
Ф12
12.5+0.3/-0.1
0.28±0.06
≤6.00
0.58±0.10
Ф13
13.5+0.3/-0.1
0.28±0.06
≤6.50
0.58±0.10
Ф14
14.5+0.3/-0.1
0.28±0.06
≤7.00
0.58±0.10
Ф15
15.5+0.3/-0.1
0.28±0.06
≤7.50
0.58±0.10
Ф16
16.5+0.3/-0.1
0.28±0.06
≤8.00
0.58±0.10
Ф17
17.5+0.3/-0.1
0.28±0.06
≤8.50
0.58±0.10
Ф18
18.5+0.3/-0.1
0.32±0.08
≤9.00
0.68±0.10
Ф20
20.6+0.5/-0.2
0.32±0.08
≤10.0
0.68±0.10
Ф22
22.6+0.7/-0.2
0.35±0.08
≤11.0
0.72±0.12
Ф25
25.6+0.7/-0.2
0.40±0.10
≤12.5
0.78±0.12
Ф28
28.6+0.7/-0.2
0.40±0.10
≤14.0
0.78±0.12
Ф30
30.6+0.7/-0.2
0.40±0.10
≤15.0
0.82±0.12
Ф35
35.6+0.7/-0.2
0.45±0.10
≤17.5
0.92±0.12

Note: Other sizes and colors can be special order

CB-HFT (LS) LOW SHRINK TEMPERATURE HEAT-SHRINKABLE TUBING

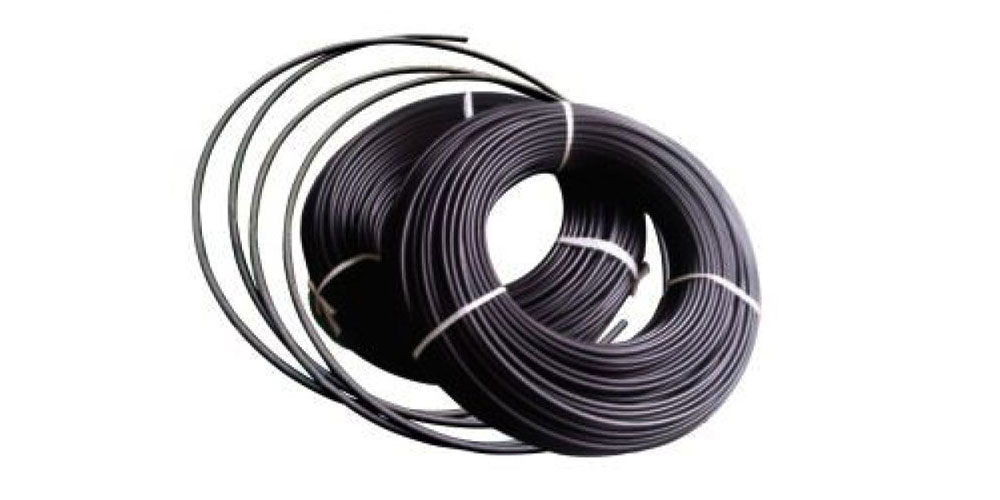

This image has an empty alt attribute; its file name is CB-HFT-LS.jpg

CB-HFT (LS) is halogen-free, highly flexible, low shrink temperature and flame-retardant polyolefin heat-shrinkable tubing. A 90℃ shrink temperature can reduce the operation time and the risk of damage to temperature sensitive components.

CB-HFT (LS) is an excellent choice for identifying wire and cable bundles, wire terminals and components. Shrinking starts at 65℃, and completes at 95℃ .

Material: radiation cross-linked polyolefin material modified special
Contraction ratio: 2: 1

Features:

  • In low temperatures can quickly contraction (shrinkage starting temperature 65 ℃, full recovery temperature 95 ℃);
  • halogen-free environment, low smoke, the product complies “RoHS”, “REACH”, “SONY”environmental standards;
  • soft, flexible;
  • Products meet UL224 VW-1 flammability rating and F-mark certified flammability rating;
  • products through the UL125 ℃ (E180908) certification;
    Excellent insulation, heat resistance and voltage performance.

Introduction as per same:

Specification

CB-HFT(LS)（300V）(Contraction ratio：2:1)

Specification Dimension before shrinkage（mm） Dimension after full contraction（mm）
Diameter（D） Wall Thickness（T） Diameter（d） Wall Thickness（t）
Ф0.6cb
0.8+0.2/-0.1
0.15±0.05
≤0.35
0.25±0.06
Ф0.7cb
0.9+0.2/-0.1
0.13±0.05
≤0.40
0.25±0.06
Ф0.8cb
1.2+0.2/-0.1
0.13±0.05
≤0.45
0.25±0.06
Ф1.0cb-Ф1.3cb
1.3+0.2/-0.1
0.13±0.05
≤0.60
0.25±0.06
Ф1.0cb-Ф1.6cb
1.6+0.2/-0.1
0.13±0.05
≤0.60
0.25±0.06
Ф1.5cb
2.0+0.2/-0.1
0.13±0.05
≤0.80
0.25±0.06
Ф2.0cb
2.5+0.2/-0.1
0.13±0.05
≤1.00
0.25±0.06
Ф2.5cb
3.0+0.2/-0.1
0.13±0.05
≤1.25
0.28±0.06
Ф3.0cb
3.5+0.2/-0.1
0.13±0.05
≤1.50
0.30±0.06
Ф3.5cb
4.0+0.2/-0.1
0.15±0.05
≤1.75
0.30±0.06
Ф4.0cb
4.5+0.2/-0.1
0.15±0.05
≤2.00
0.30±0.06
Ф4.5cb
5.0+0.2/-0.1
0.15±0.05
≤2.25
0.30±0.06
Ф5.0cb
5.5+0.2/-0.1
0.15±0.05
≤2.50
0.30±0.06
Ф5.5cb
6.0+0.2/-0.1
0.15±0.05
≤2.75
0.30±0.06
Ф6.0cb
6.5+0.2/-0.1
0.15±0.05
≤3.00
0.30±0.06
Ф6.5cb
7.0+0.3/-0.1
0.15±0.05
≤3.25
0.30±0.06
Ф7.0cb
7.5+0.3/-0.1
0.15±0.05
≤3.50
0.32±0.06
Ф8.0cb
8.5+0.3/-0.1
0.15±0.05
≤4.00
0.32±0.06
Ф9.0cb
9.5+0.3/-0.1
0.16±0.05
≤4.50
0.34±0.06
Ф10cb
10.5+0.3/-0.1
0.16±0.05
≤5.00
0.34±0.06
Ф11cb
11.5+0.3/-0.1
0.16±0.05
≤5.50
0.34±0.06
Ф12cb
12.5+0.3/-0.1
0.16±0.05
≤6.00
0.34±0.06
Ф13cb
13.5+0.3/-0.1
0.16±0.05
≤6.50
0.34±0.06
Ф14cb
14.5+0.3/-0.1
0.16±0.05
≤7.00
0.34±0.06
Ф15cb
15.5+0.6/-0.1
0.16±0.05
≤7.50
0.34±0.06
Ф16cb
16.5+0.6/-0.1
0.18±0.05
≤8.00
0.38±0.08
Ф17cb
17.5+0.6/-0.1
0.18±0.05
≤8.50
0.38±0.08
Ф18cb
18.7±0.4
0.18±0.05
≤9.00
0.38±0.08
Ф20cb
21.0±0.5
0.20±0.05
≤10.0
0.42±0.08
Ф22cb
23.0±0.5
0.20±0.05
≤11.0
0.42±0.08
Ф25cb
26.0±0.5
0.20±0.05
≤12.5
0.42±0.08
Ф30cb
31.0±0.5
0.25±0.08
≤15.0
0.48±0.08
Ф35cb
36.0±1.0
0.25±0.08
≤17.5
0.48±0.08

Note: Other sizes and colors can be special order
