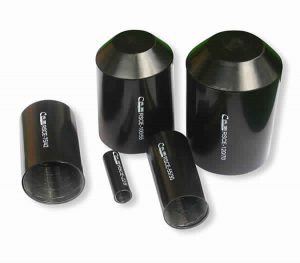

The end cap has excellent water resistance, which is widely applied to the treatment of distal ends of electric power cable and telecommunication cable.
Specification
Main technical performance
| Items | Unit | Specifications | Test methods |
| Tensile Strength | MPa | ≥12 | ASTM D2671 |
| Elongation | % | ≥300 | ASTM D2671 |
| 120℃、168h heat aging | K1＞0.8, K2＞0.7 | ASTM D2671 | |
| Volume resistance | Ω.cm | ≥10¹⁴ | ASTM D2671 |
| Dielectric strength | KV/min | ≥18 | ASTM D2671 |
| Water absorption | ≤0.5% | ASTM D570 |
VALVE COULD BE SUPPLIED AS REQUEST.
Size
| Size | As supplied(mm) | After recovery(mm) | Cable range(mm) | ||||
| Length +5% | ID | wall | ID | wall | Longitudinal change | ||
| RSCE-12/4 | 40 | ≥12 | 0.90±0.15 | ≤4.0 | 2.5±0.2 | 1%～-10% | 4～9 |
| RSCE-15/5 | 48 | ≥15 | 0.90±0.15 | ≤5.0 | 2.5±0.2 | 6～12 | |
| RSCE-19/6 | 65 | ≥19 | 0.90±0.15 | ≤6.0 | 2.6±0.2 | 7～16 | |
| RSCE-25/8.5 | 75 | ≥25 | 0.90±0.15 | ≤8.5 | 2.6±0.2 | 9～20 | |
| RSCE-35/15 | 90 | ≥35 | 1.10±0.20 | ≤15.0 | 3.3±0.3 | 16～30 | |
| RSCE-45/16 | 92 | ≥45 | 1.15±0.20 | ≤16.0 | 3.6±0.3 | 17～38 | |
| RSCE-55/25 | 115 | ≥55 | 1.30±0.30 | ≤25.0 | 3.4±0.3 | 28～48 | |
| RSCE-65/26 | 120 | ≥65 | 1.30±0.30 | ≤24.0 | 3.8±0.4 | 30～60 | |
| RSCE-75/35 | 130 | ≥75 | 1.50±0.35 | ≤42.0 | 3.8±0.4 | 40～68 | |
| RSCE-100/55 | 145 | ≥100 | 1.80±0.40 | ≤55.0 | 3.8±0.4 | 55～90 | |
| RSCE-120/70 | 175 | ≥120 | 1.80±0.40 | ≤70.0 | 4.0±0.4 | 68～110 | |
